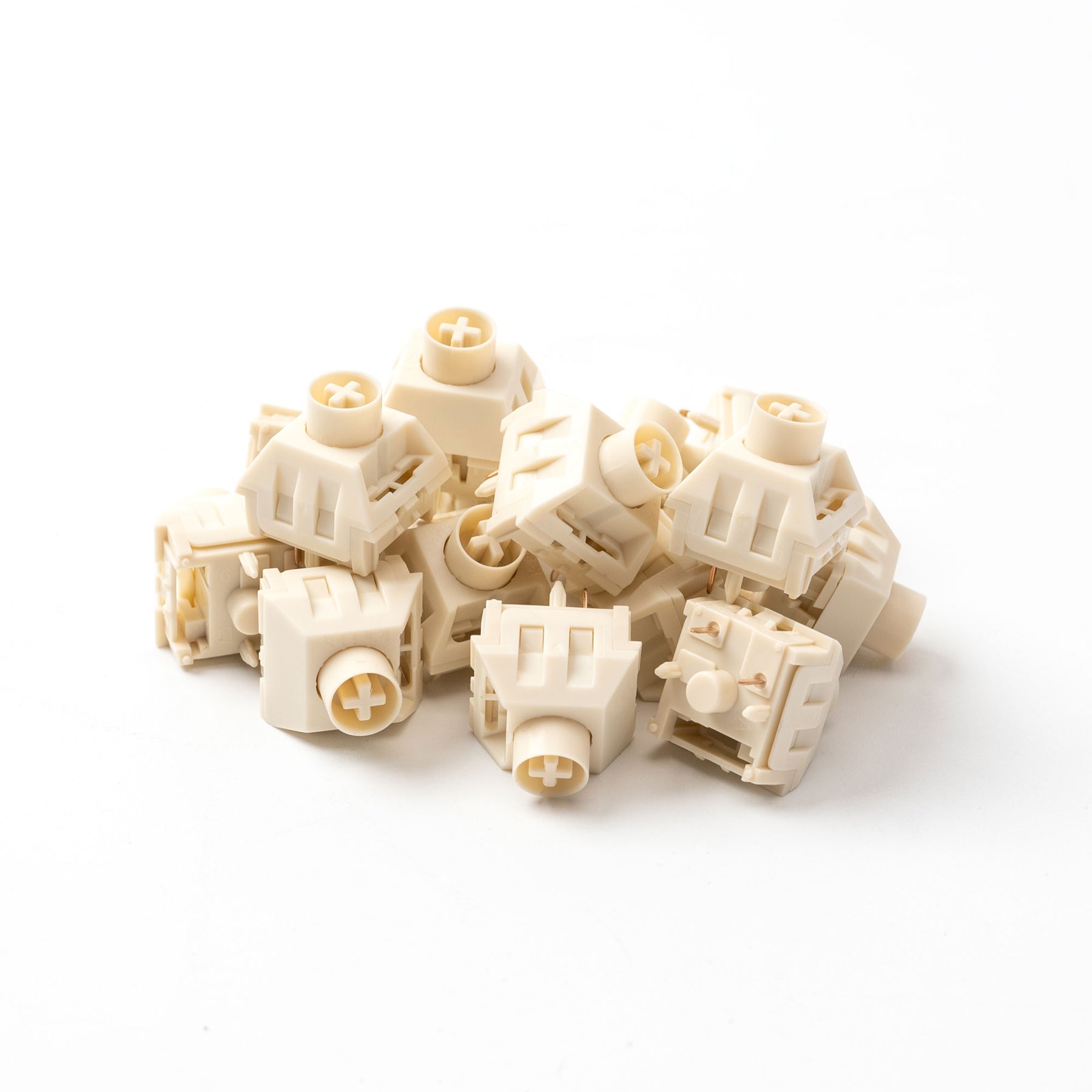

Kailh Box Cream Pro Switch
Kailh Box Cream Pro Switch - Cream / 110 Switches is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Kailh Box Cream Pro Switch
Brand New POM PRO Material
The Box Cream Pro Switch utilizes the special POM material newly developed by Kailh with improved POM wear resistance material. By reducing the switch’s friction coefficient, the POM switch’s unique clear sound is retained.
Factory Pre-Lubed
Compared to the older version (Box Cream), the Box Cream Pro Switch is factory pre-lubed. After many debugging testings of the lubricating oil ratios, we’ve reached a balance point that improves the entire POM switch body’s smoothness.
Long Spring
The Box Cream Pro Switch is equipped with a long spring to provide a strong rebound, delivering a unique and smooth fingertip feel.
Innovative “Box”
Structure
The innovative sealed “Box“ structure prevents dust and water from corrosion and provides extra protection for the contact plate and leaf.
5-Pin Stable Base
The 5-Pin structure increases stability and greatly reduces the wobble of the switch when it is pressed.
Product Structure
Specs
| Type | Linear |
|---|---|
| Operation Force | 45±10 gf |
| Pre-travel | 1.7±0.4 mm |
| Return Force | ≥15 gf |
| Total Travel | 4.0±0.3 mm |
| Sound Level | Low |
| Operation Life | Up to 50M cycles |
| Suitable For | Gaming/office |
| Product Name | Box Cream Pro Switch |
|---|---|
| Stem | POM |
| Top Housing | POM |
| Bottom Housing | POM |
| Contact | Composite gold |
| Spring | Spring steel |
| Protecting Cover | Nylon |
| Slider | POM |
| Pins | 5-Pin |
| Factory Pre-lubed | Yes |
| SMD LED Support | Yes |
Compatible Keyboard:
Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V series, Q series and Q Pro series Keychron keyboards.
